Product Description

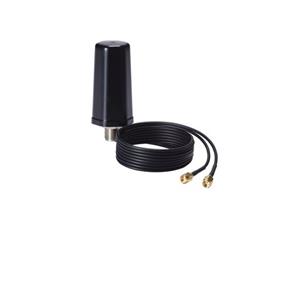

The MAT-WDB-DA-RM-2-0203-1m antenna is a compact MIMO 2x2 dual-band desktop antenna with a RP-SMA-type (male) connector.

The antenna can be used in both the 2.4 GHz and 5 GHz frequencies, provides an antenna gain of 2/3 dBi, and comes with a 1-m cable.

Features and Benefits

• Small size for easy installation
• Desktop mount
• RP-SMA-type (male) connector

MAT-WDB-DA-RM-2-0203-1m

MAT-WDB-DA-RM-2-0203-1m Series

2.4/5 GHz, desktop antenna, 2/3 dBi, MIMO 2x2, RP-SMA-type (male), 1 m cable

Antenna Characteristics

• Frequency:

  • 2.4 to 2.5, 4.9 to 5.85 GHz

• Antenna Type:

  • MIMO 2x2, Omni-directional

• Typical Antenna Gain:

  • 2/3 dBi

• Connector:

  • RP-SMA (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear, Vertical

• HPBW/Horizontal:

  • 360/114°

• HPBW/Vertical:

  • 75/54°

• V.S.W.R.:

  • 2:1 max.

• Power Handling:

  • 2 W (max.)

Physical Characteristics

• Weight:

  • 156 g (0.34 lb)

• Length (including RF cable):

  • 194.3 mm (7.65 in)

• IP Rating:

  • IP55

• Radome Color:

  • Black

• Radome Material:

  • PC-1250G

• Installation:

  • Desktop Mount

• Cable:

  • RG-174

• Cable Length:

  • 1 m

Environmental Limits

• Operating Temperature:

  • -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included):

  • -40 to 75°C (-40 to 167°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
