W Series
Standard Terminals
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |
WDU 2.5 FEED THROUGH TERMINAL 24A 800V | 102000 |
£0.64
|
Add to cart | |
![]() |

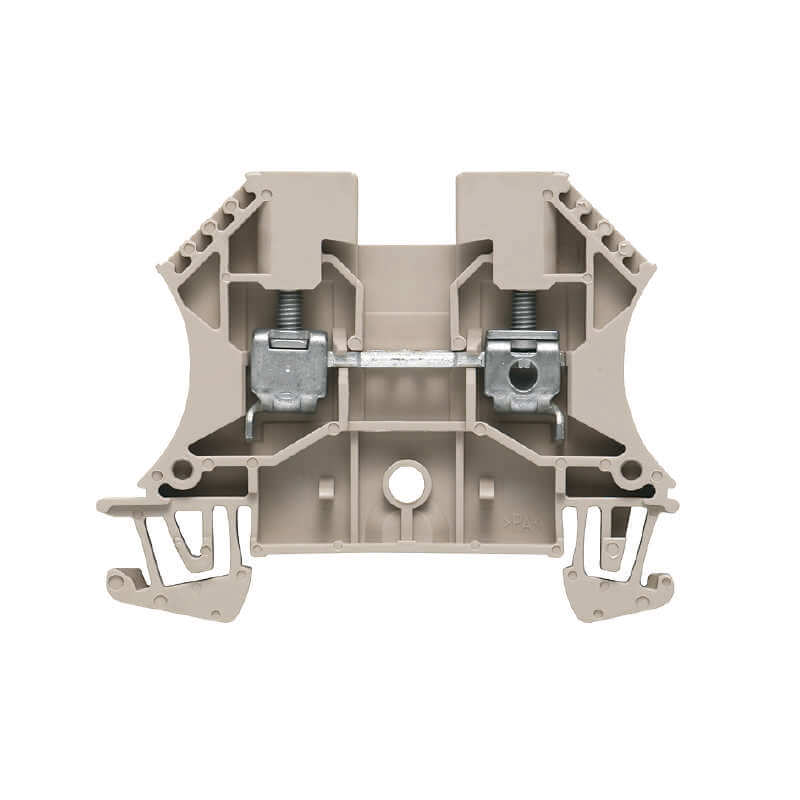

WDU 4 FEED THROUGH TERMINAL 32A 800V | 102010 |
£0.71
|
Add to cart | |
![]() |

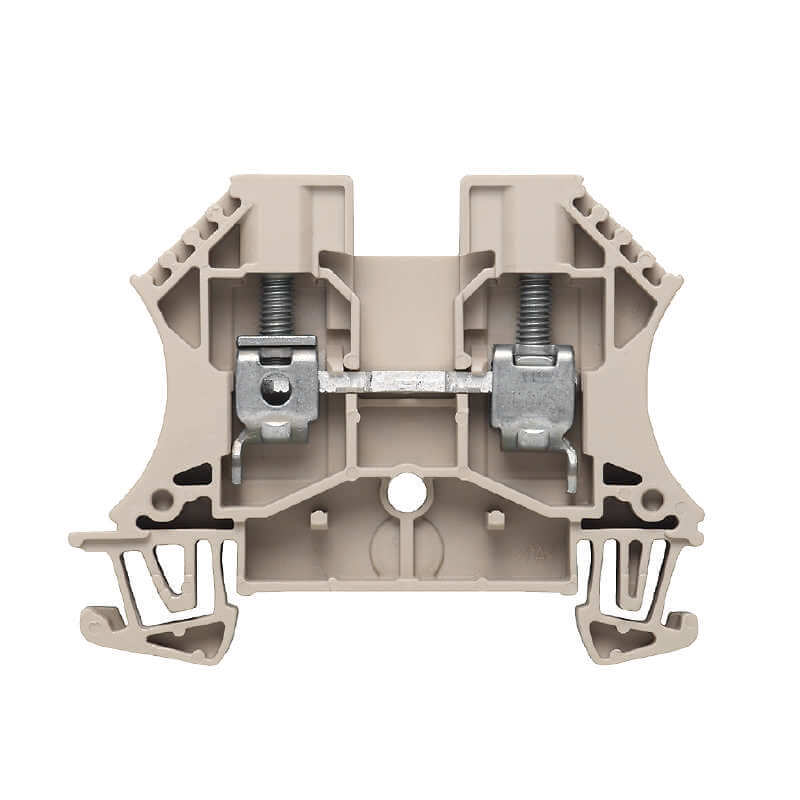

WDU 6 FEED THROUGH TERMINAL 41A 800V | 102020 |
£0.92
|
Add to cart | |
![]() |

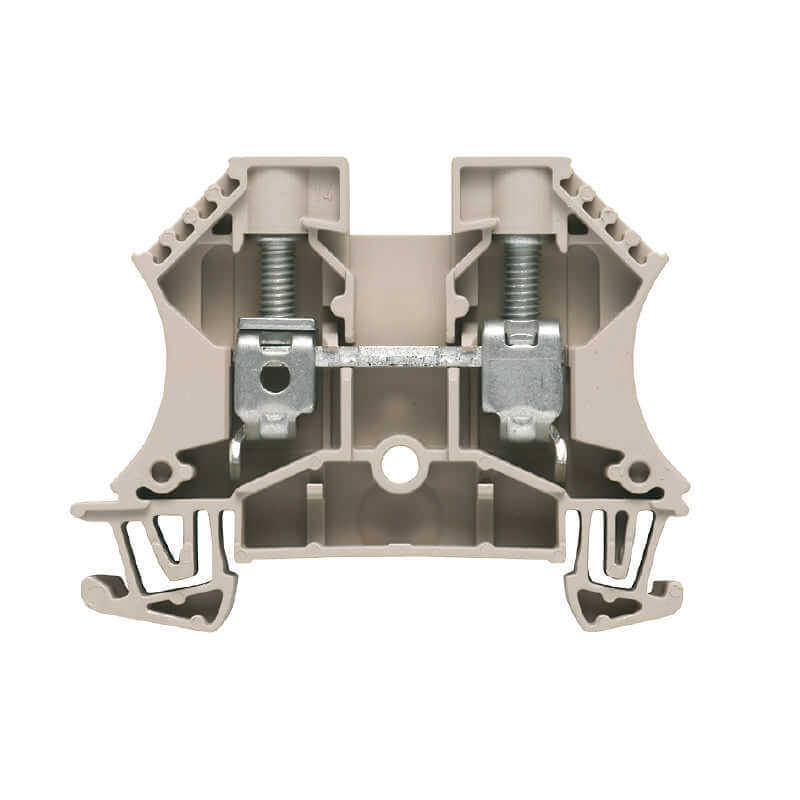

WDU 10 FEED THROUGH TERMINAL 76A 800V | 102030 |
£1.09
|
Add to cart | |
![]() |

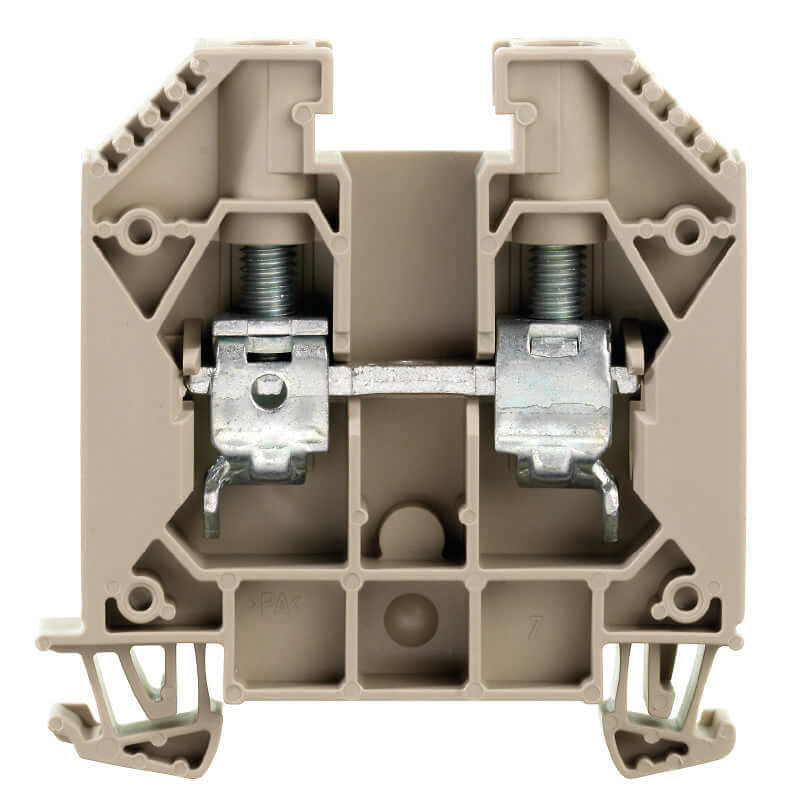

WDU 16 FEED THROUGH TERMINAL 76A 1000V | 102040 |
£1.58
|
Add to cart | |
![]() |

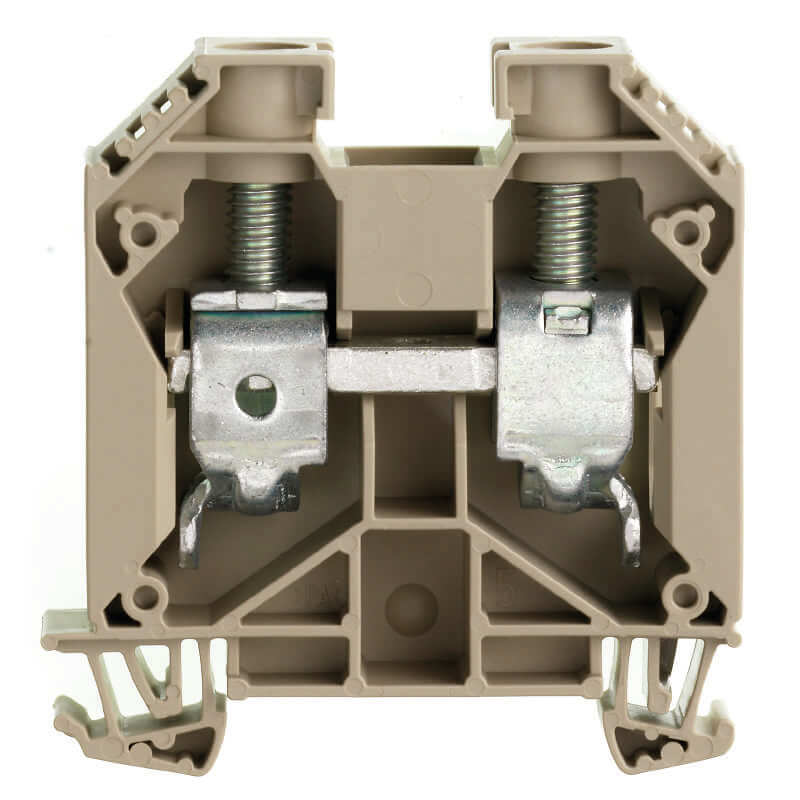

WDU 35 FEED THROUGH TERMINAL 125A 1000V | 102050 |
£3.88
|
Add to cart | |
![]() |

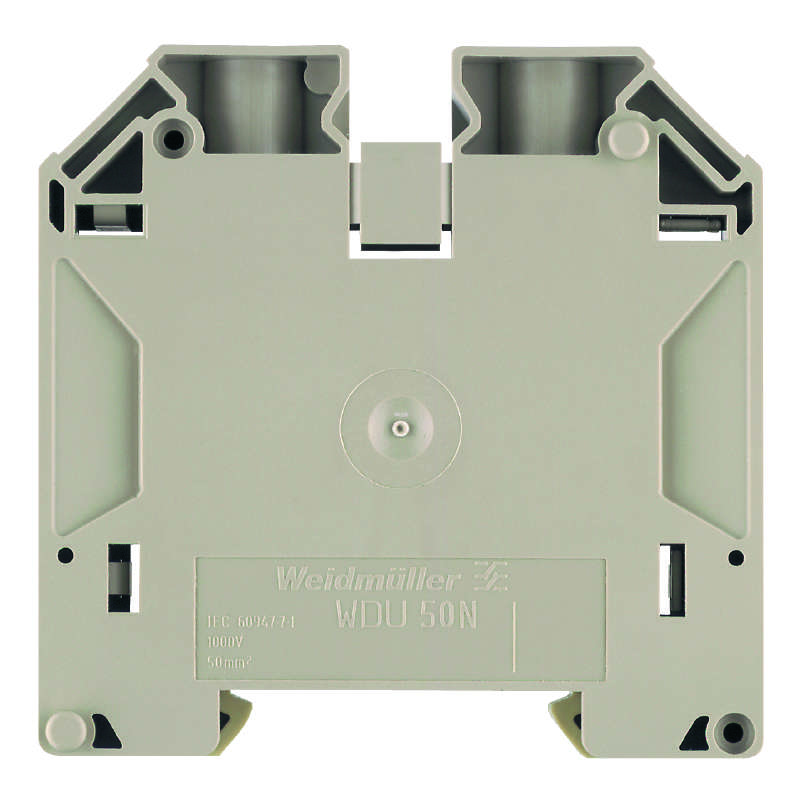

WDU50N FEED THROUGH TERMINAL 150A 1000V | 182084 |
£8.45
|
Add to cart | |
![]() |

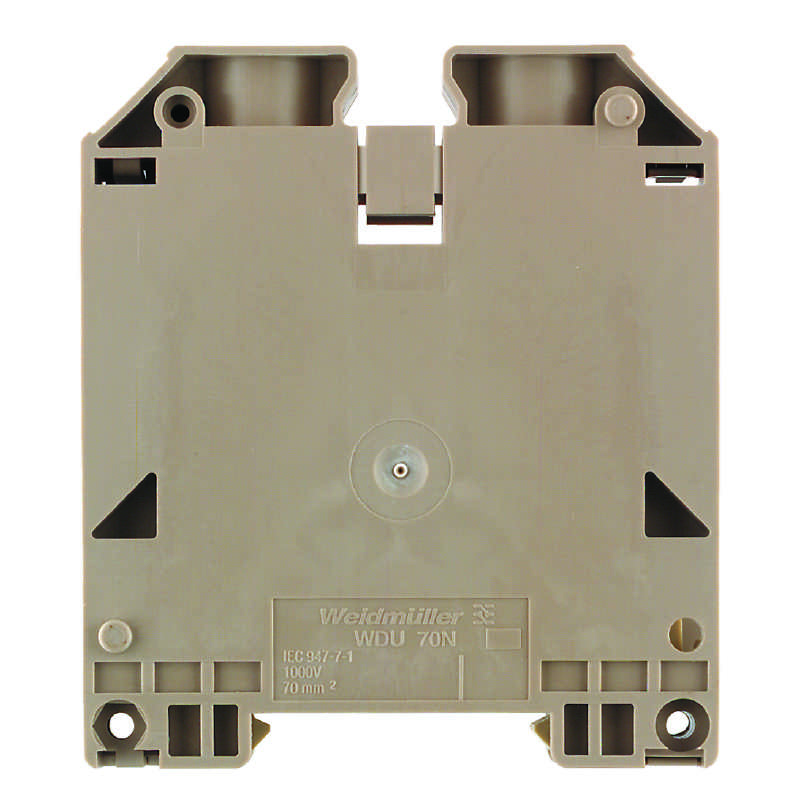

WDU70N THROUGH TERMINAL 192A 1000V | 951219 |
£10.52
|
Add to cart | |
![]() |

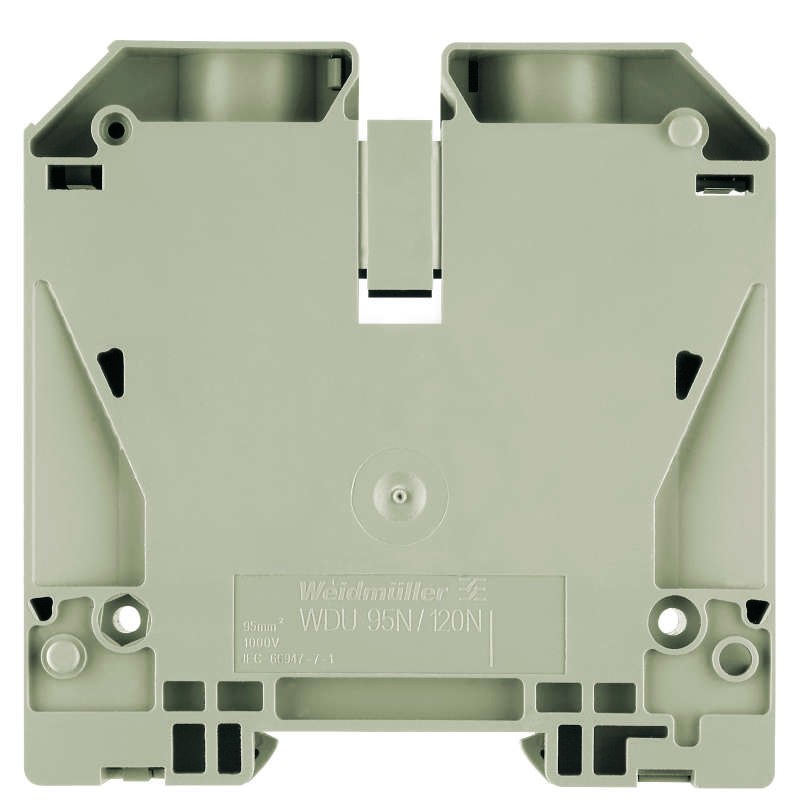

WDU95/120N THROUGH TERMINAL 269A 1000V | 182055 |
£15.84
|
Add to cart |
End Plates
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

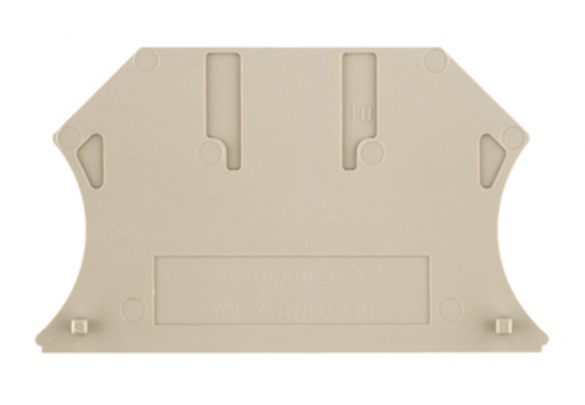

WAP2.5-10 END PLATE FOR WDU2.5 TO WDU10 | 105000 |
£0.32
|
Add to cart | |
![]() |

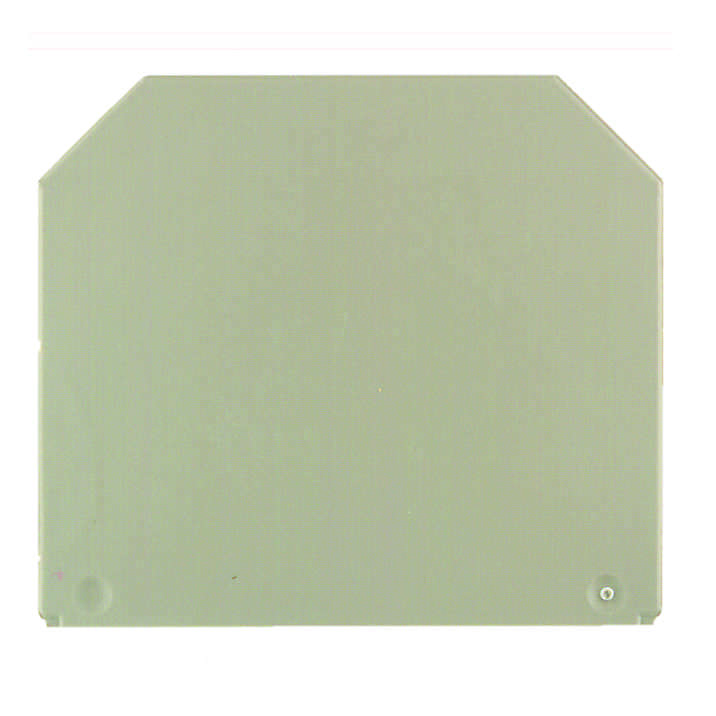

WTW2.5-10 & WAP16-35 END PLATE WDU16/35 | 105010 |
£0.49
|
Add to cart |
End Stops
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

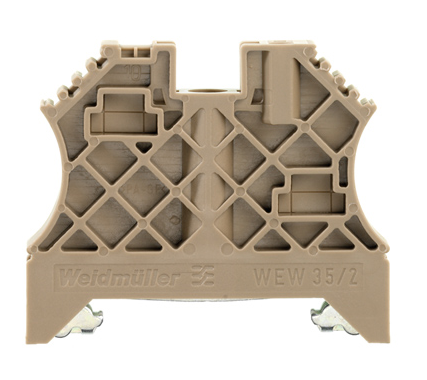

WEW35/2 END STOP FOR TS35 RAIL | 106120 |
£0.67
|
Add to cart |
ZQV Pluggable Cross Connections
ZQV for WDU2.5
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

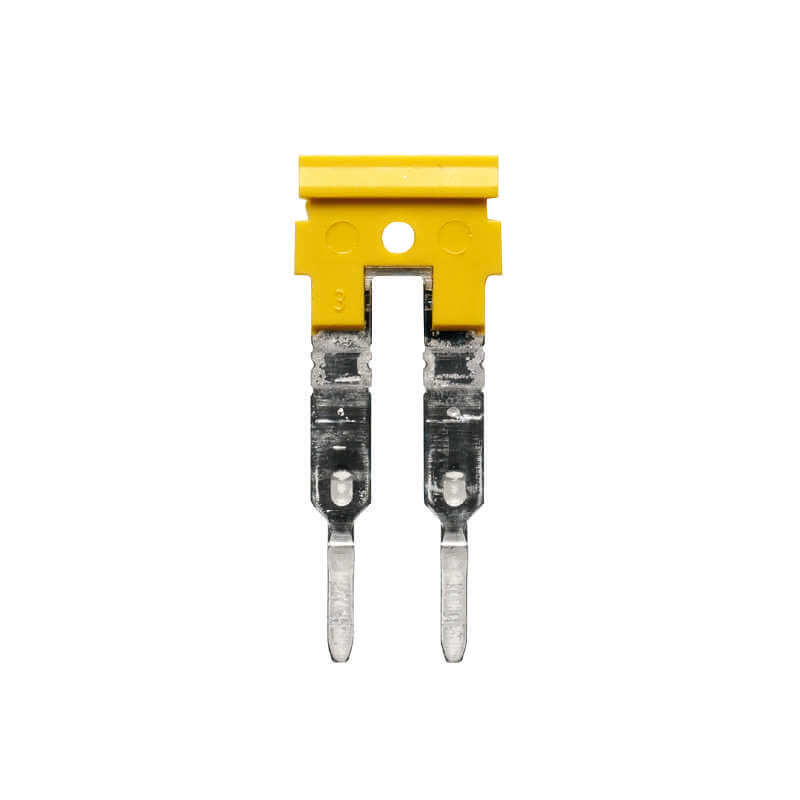

ZQV2.5N/2 (OBSOLETE - USE 1527540000) | 169380 |
£0.24
|
Add to cart | |
![]() |

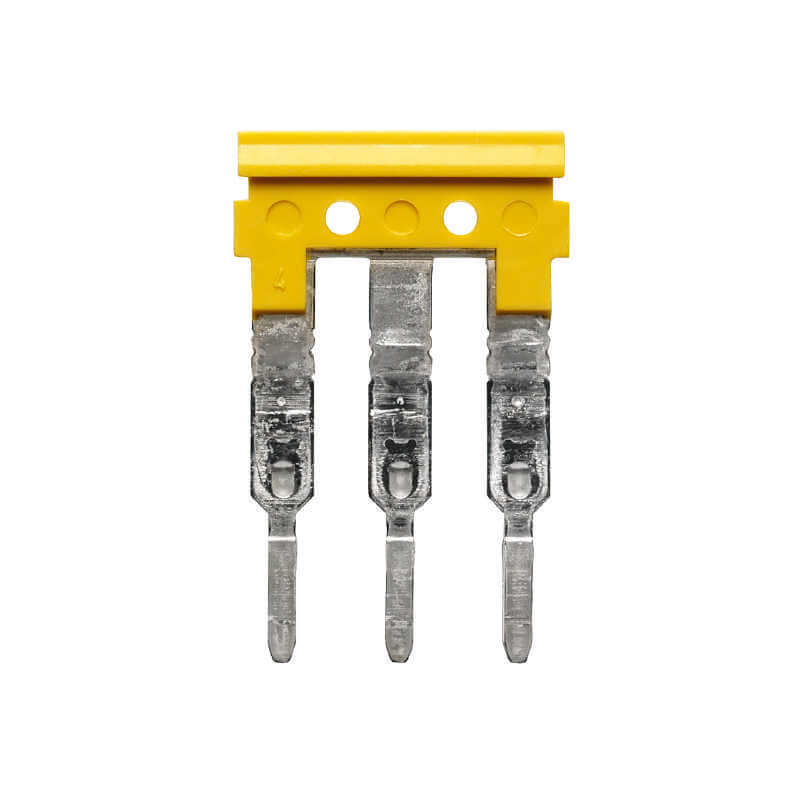

ZQV2.5N/3 (OBSOLETE - USE 1527570000) | 169381 |
£0.48
|
Add to cart | |
![]() |

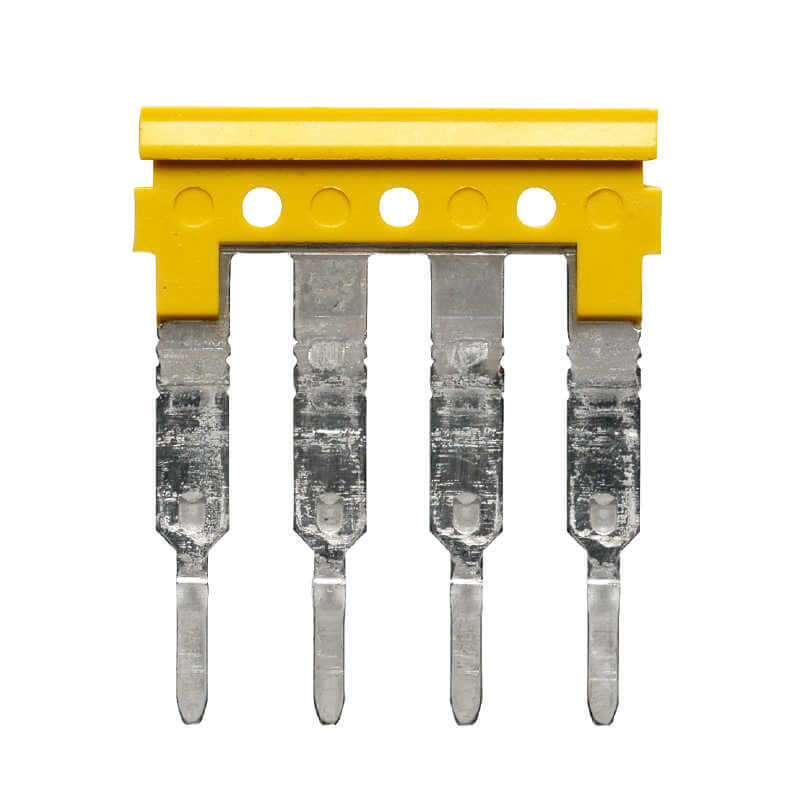

ZQV2.5N/4 4 POLE PLUGGABLE WDU2.5 | 169382 |
£0.67
|
Add to cart | |
![]() |

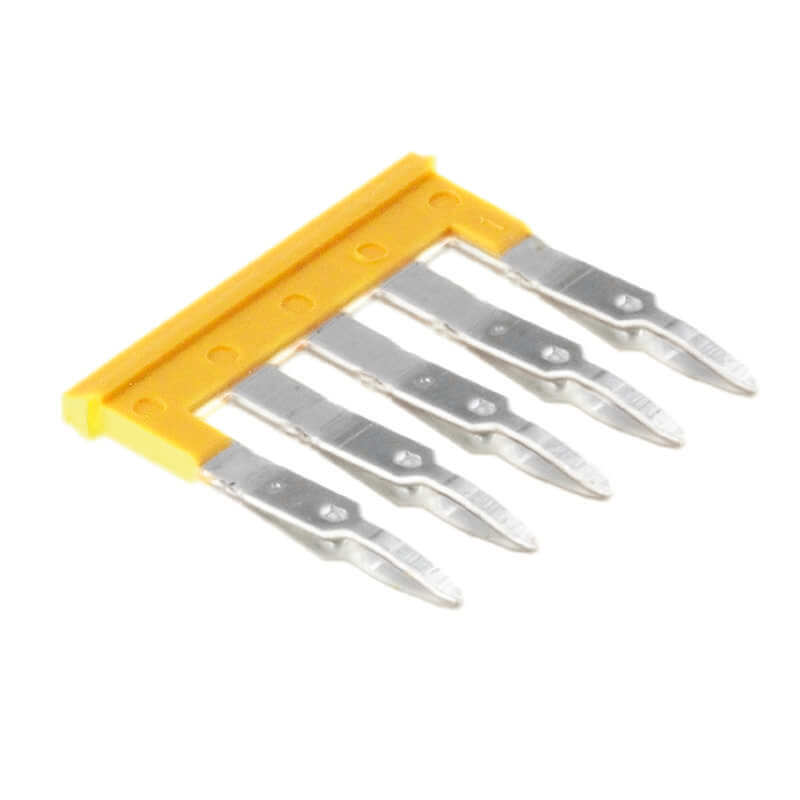

ZQV2.5N/5 5 POLE PLUGGABLE FOR WDU2.5 | 169383 |
£0.90
|
Add to cart | |
![]() |

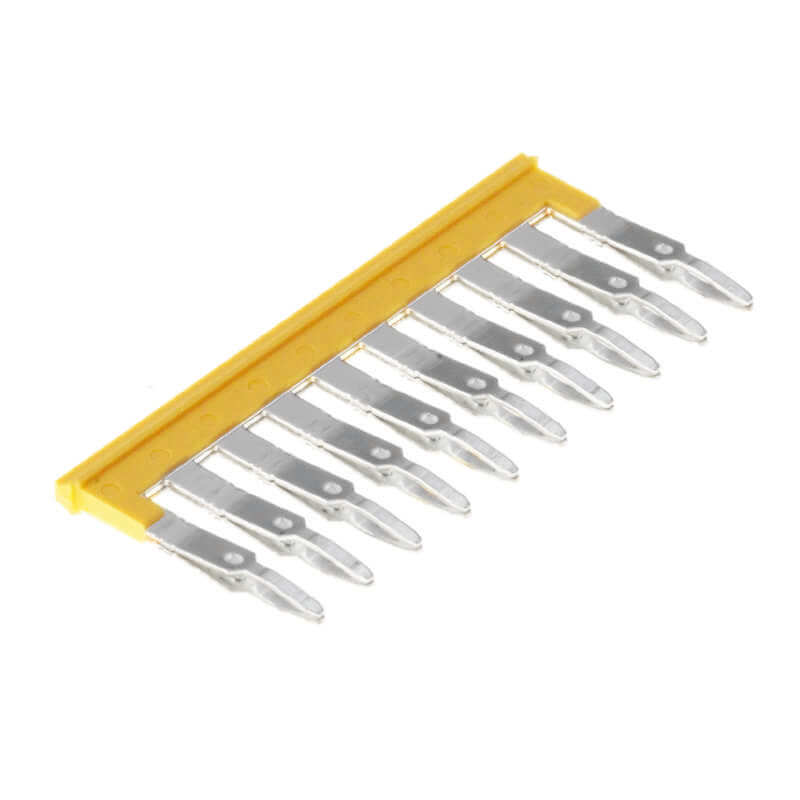

ZQV2.5N/10 (OBSOLETE USE 1527690000) | 169388 |
£1.87
|
Add to cart |
ZQV for WDU4
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

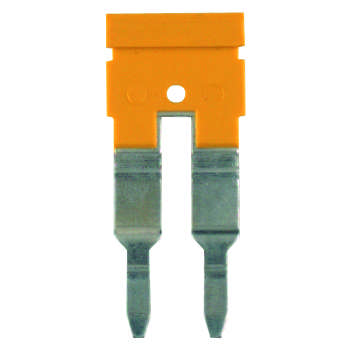

ZQV4N/2 2 WAY PLUGGABLE FOR WDU4 | 175825 |
£0.31
|
Add to cart | |
![]() |

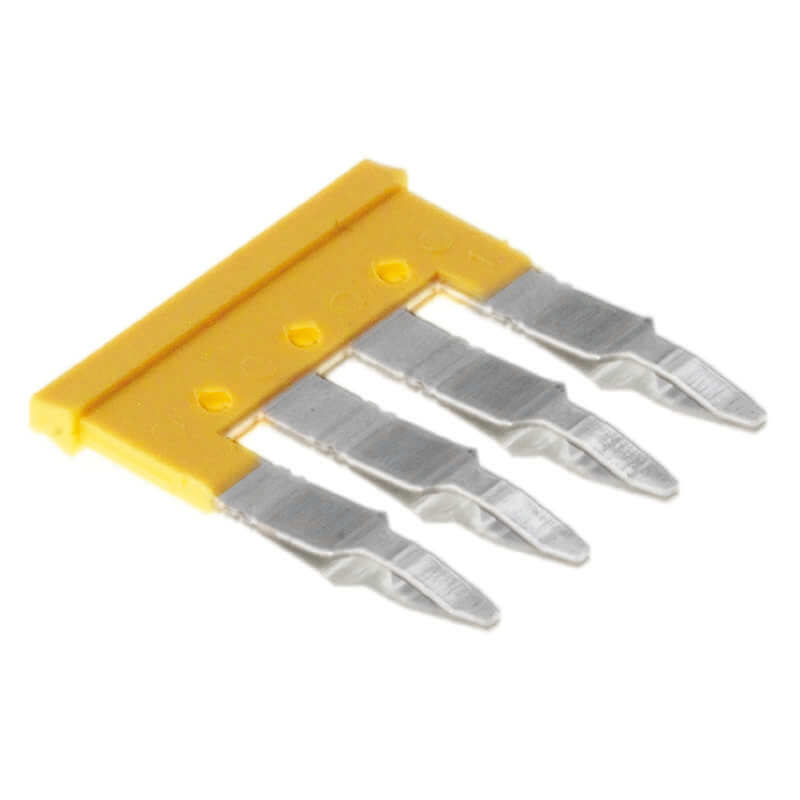

ZQV4N/4 WAY PLUGGABLE FOR WDU4 | 176262 |
£0.75
|
Add to cart | |
![]() |

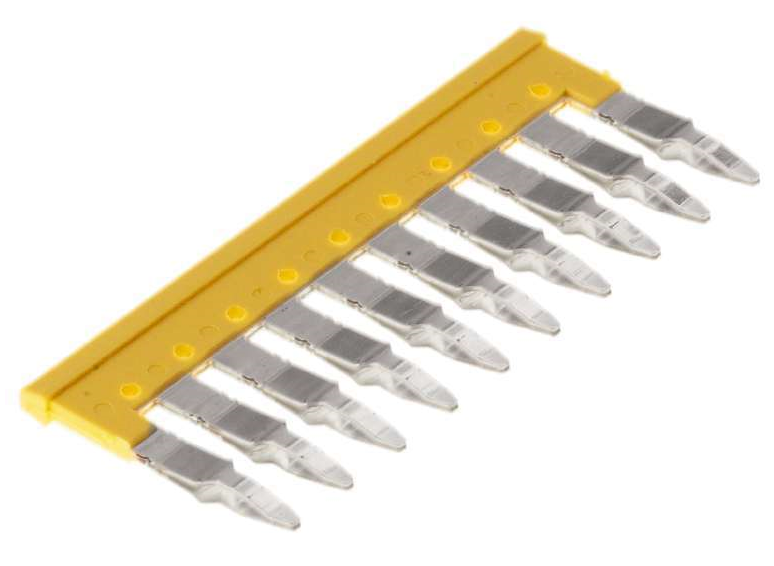

ZQV4N/10 10 POLE PLUGGABLE FOR WDU4 | 175826 |
£1.74
|
Add to cart |
WQV Screw Cross Connections
WQV for WDU2.5
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

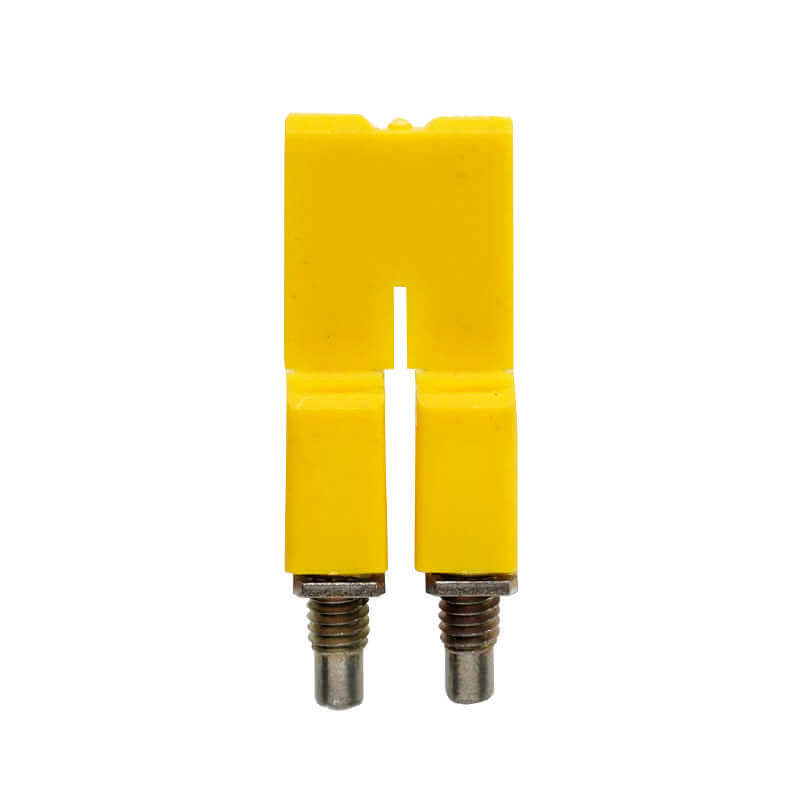

WQV2.5/2 2 POLE JUMPER BAR WDU2.5 | 105366 |
£0.79
|
Add to cart | |
![]() |

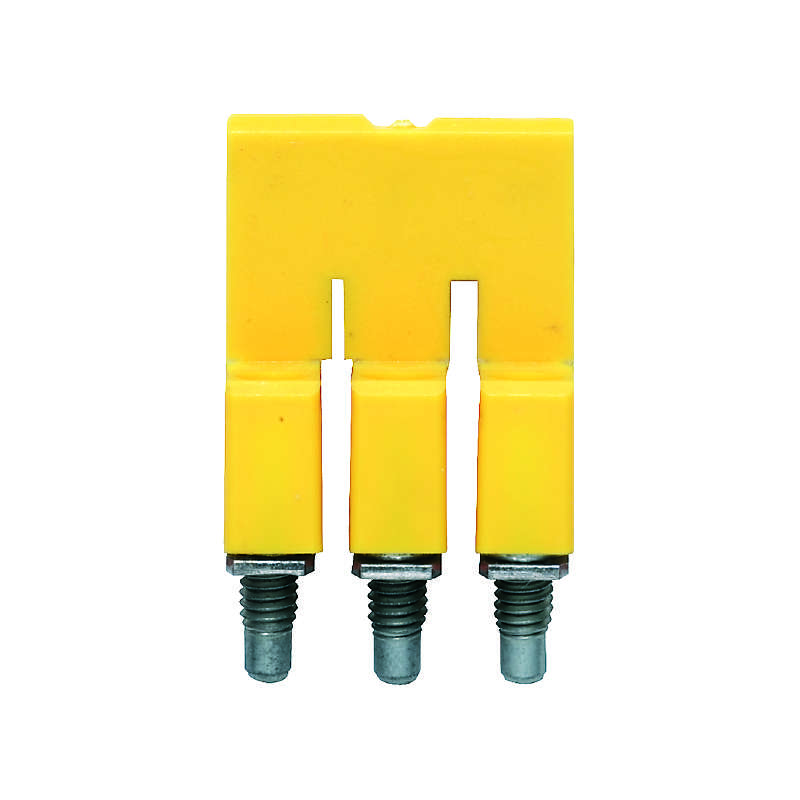

WQV 2.5/3 3 POLE JUMPER BAR WDU2.5 | 105376 |
£1.11
|
Add to cart | |
![]() |

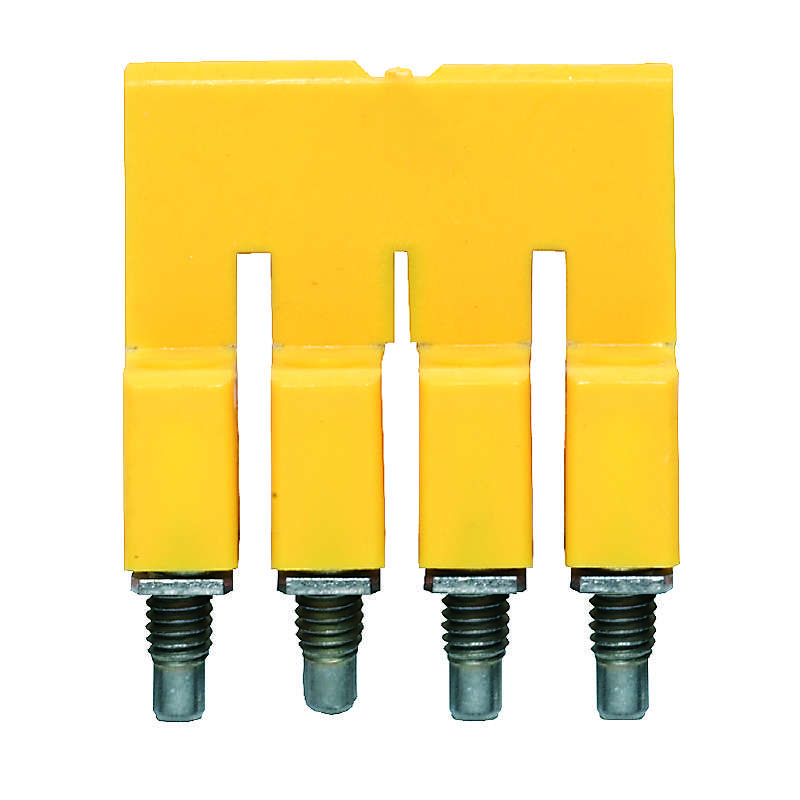

WQV 2.5/4 (50) 4 POLE JUMPER BAR WDU2.5 | 105386 |
£1.42
|
Add to cart | |
![]() |

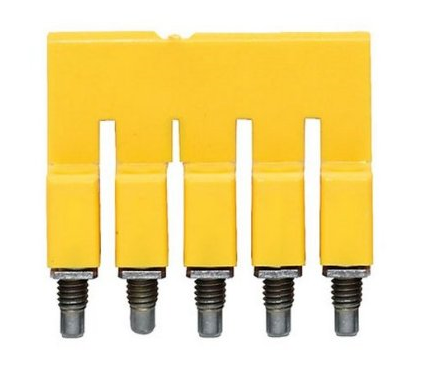

WQV 2.5/5 (10) 5 POLE JUMPER BAR WDU2.5 | 105396 |
£1.34
|
Add to cart | |
![]() |

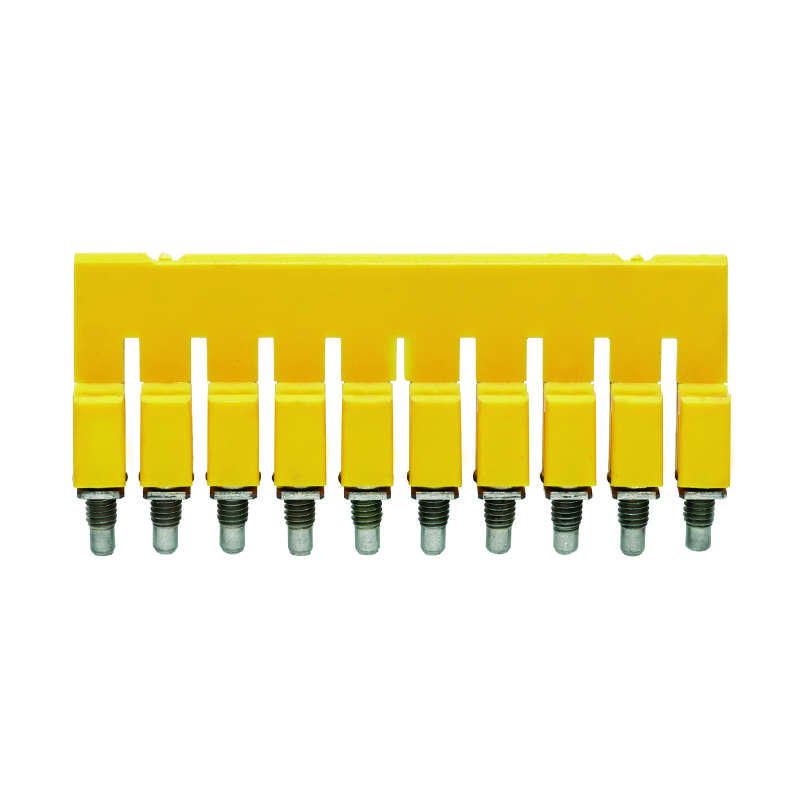

WQV2.5-10 10 POLE JUMPER BAR WDU2.5 | 105446 |
£3.41
|
Add to cart |
WQV for WDU4
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

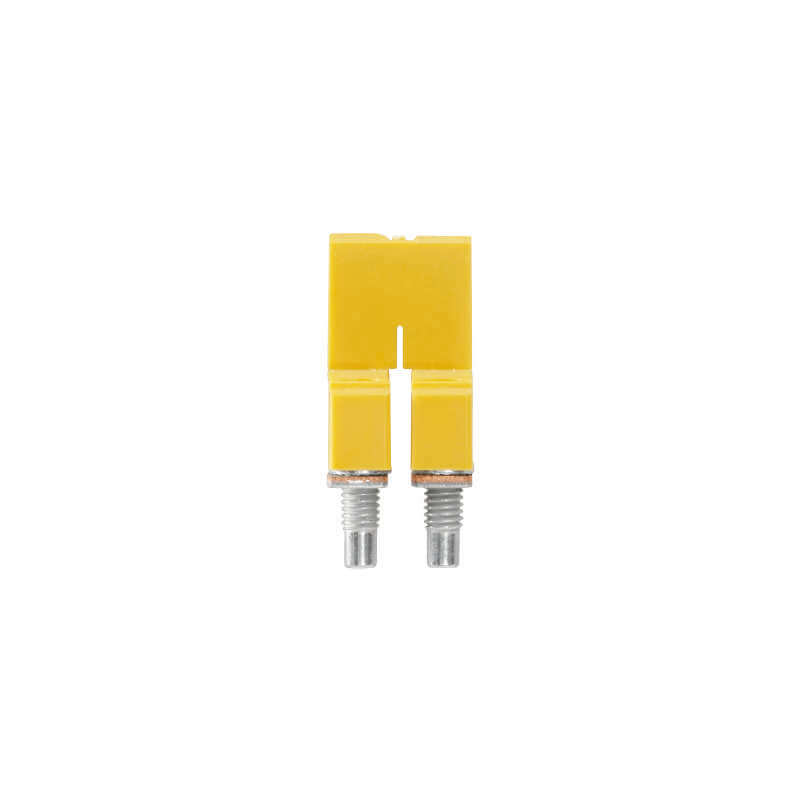

WQV4/2 2 POLE JUMPER BAR WDU4 | 105196 |
£0.63
|
Add to cart | |
![]() |
WQV4/3 3 POLE JUMPER BAR FOR WDU4 | 105456 |
£1.11
|
Add to cart | |
![]() |
WQV4/4 4 POLE JUMPER BAR FOR WDU4 | 105466 |
£1.41
|
Add to cart | |
![]() |
WQV4/10 10 POLE JUMPER BAR FOR WDU4 | 105206 |
£3.27
|
Add to cart |
WQV for WDU6
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

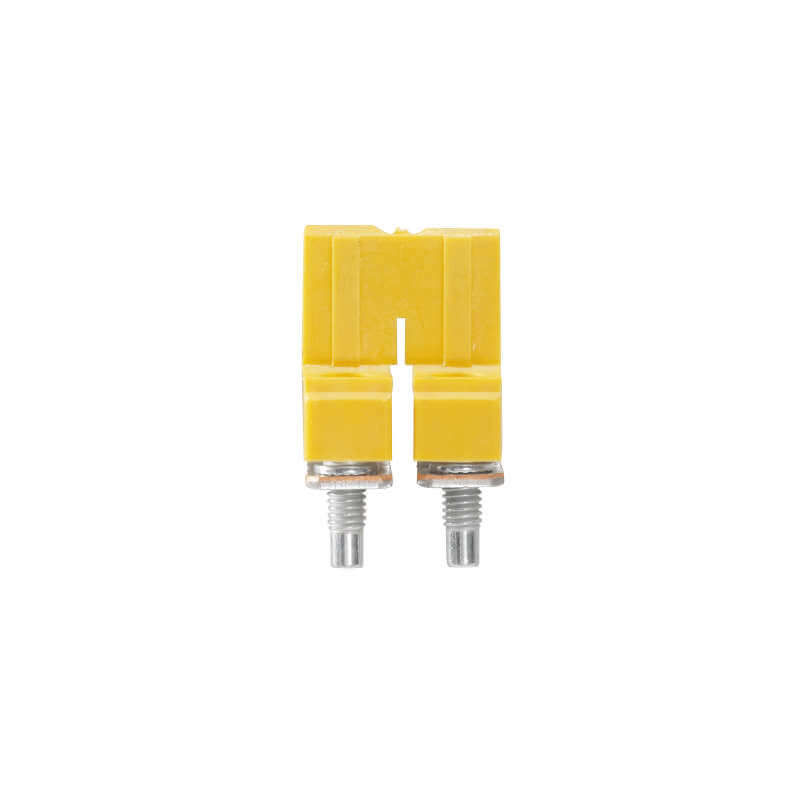

WQV6/2 2 POLE JUMPER BAR FOR WDU6 | 105236 |
£0.80
|
Add to cart | |
![]() |
WQV6/3 3 POLE JUMPER BAR FOR WDU6 | 105476 |
£1.20
|
Add to cart | |
![]() |
WQV6/4 4 POLE JUMPER BAR FOR WDU6 | 105486 |
£1.57
|
Add to cart | |
![]() |
WQV6/10 10 POLE JUMPER BAR FOR WDU6 | 105226 |
£3.32
|
Add to cart |
WQV for WDU10
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

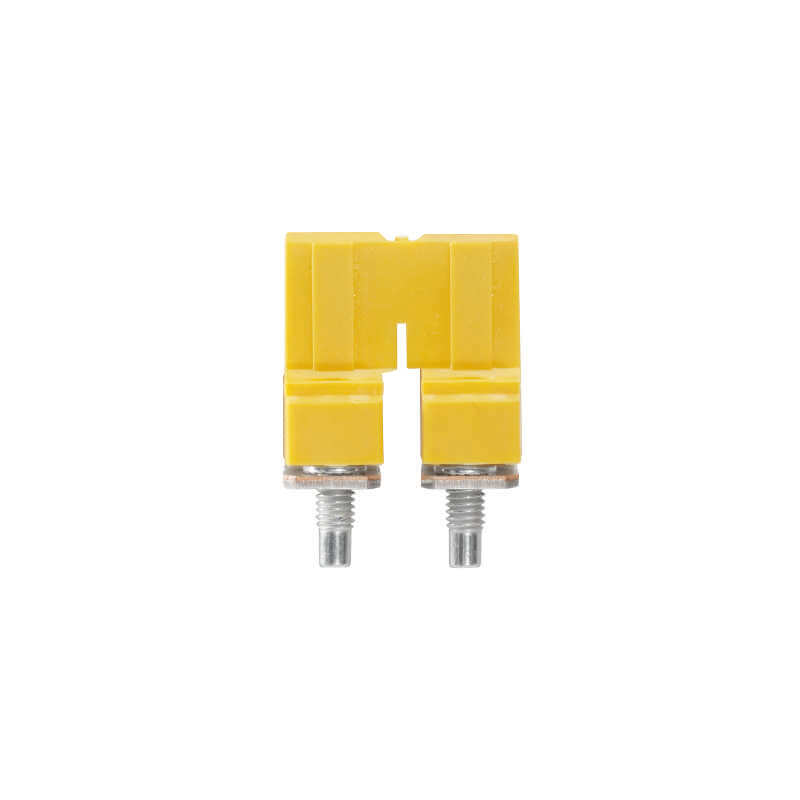

WQV10/2 2 POLE JUMPER BAR FOR WDU10 | 105256 |
£0.79
|
Add to cart | |
![]() |
WQV10/3 3 POLE JUMPER BAR FOR WDU10 | 105496 |
£1.20
|
Add to cart | |
![]() |
WQV10/4 4 POLE JUMPER BAR FOR WDU10 | 105506 |
£1.57
|
Add to cart | |
![]() |
WQV10/10 10 POLE JUMPER BAR FOR WDU10 | 105246 |
£4.27
|
Add to cart |
WQV for WDU16
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

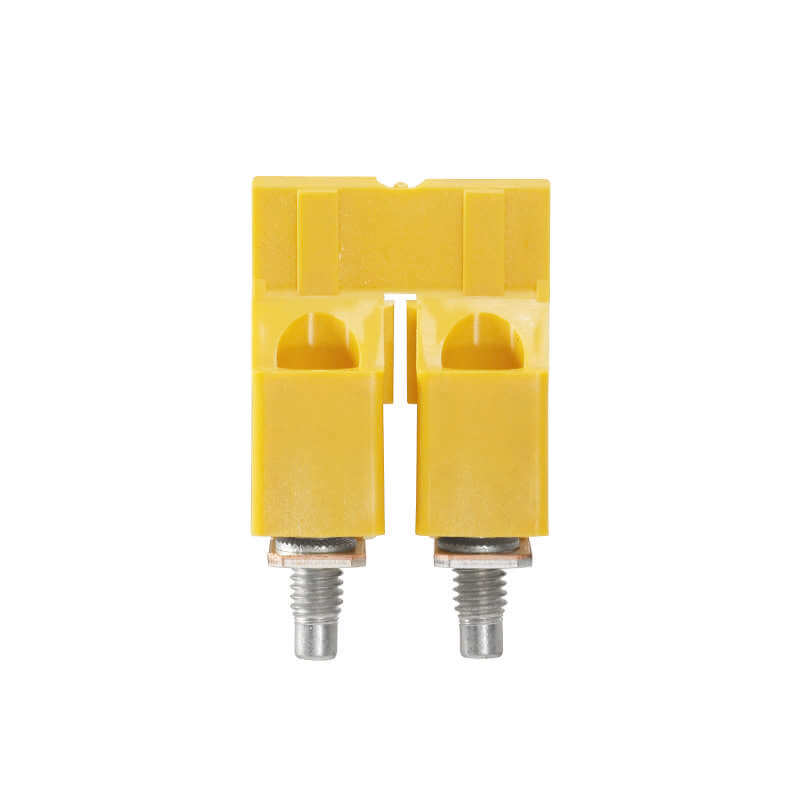

WQV16/2 2 POLE JUMPER BAR FOR WDU16 | 105326 |
£0.85
|
Add to cart | |
![]() |
WQV16/4 4 POLE JUMPER BAR FOR WDU16 | 105526 |
£1.64
|
Add to cart | |
![]() |
WQV16/3 JUMPER BAR 3 WAY FOR WDU16 | 105516 |
£1.20
|
Add to cart | |
![]() |
WQV16/10 (10) 10WAY JUMPER BAR FOR WDU16 | 105336 |
£5.38
|
Add to cart |
WQV for WDU35
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

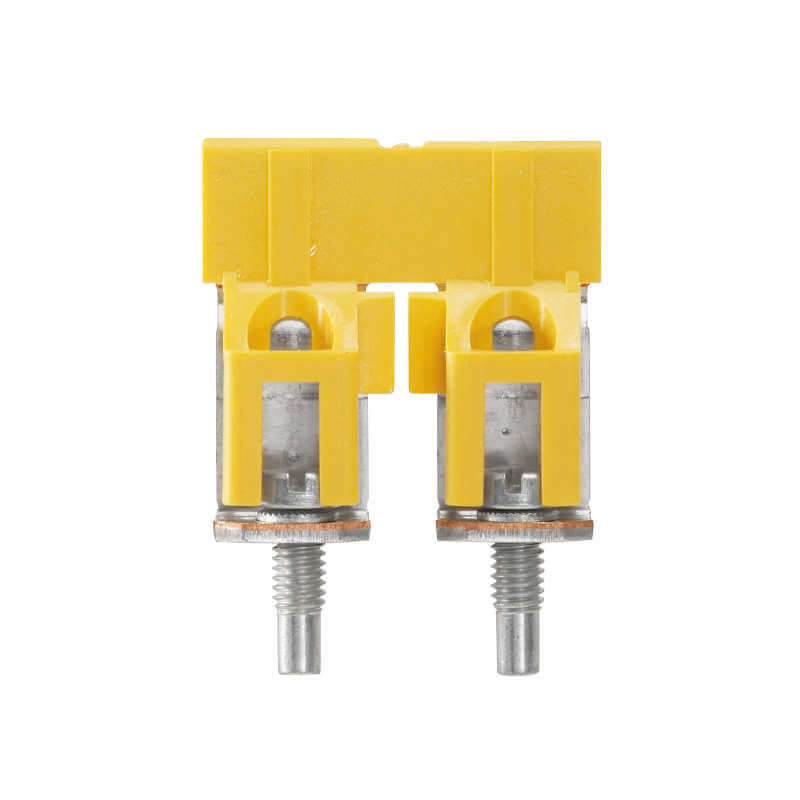

WQV35/2 JUMPER BAR 2 WAY FOR WDU35 | 105306 |
£1.90
|
Add to cart | |
![]() |
WQV 35/3 JUMPER BAR 3WAY FOR WDU35 | 105536 |
£2.69
|
Add to cart | |
![]() |
WQV35/4 JUMPER BAR 4 WAY FOR WDU35 | 105546 |
£2.36
|
Add to cart | |
![]() |
WQV35/10 JUMPER BAR 10 WAY FOR WDU35 | 105316 |
£5.82
|
Add to cart |
WQV for WDU50
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

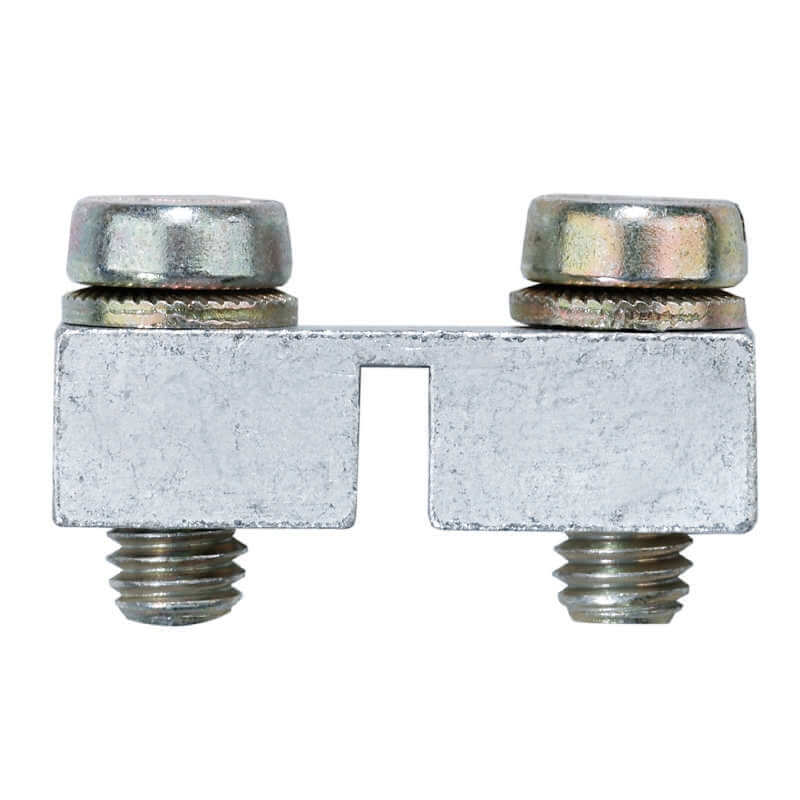

WQV 50N/2 2WAY FOR WDU50 | 183406 |
£3.82
|
Add to cart | |
![]() |
WEIDMULLER WQV50N/4 JUMPER BAR | 183408 |
£8.73
|
Add to cart |
WQV for WDU70
Description | Part Number | Price (ex VAT) | Qty | ||
---|---|---|---|---|---|
![]() |

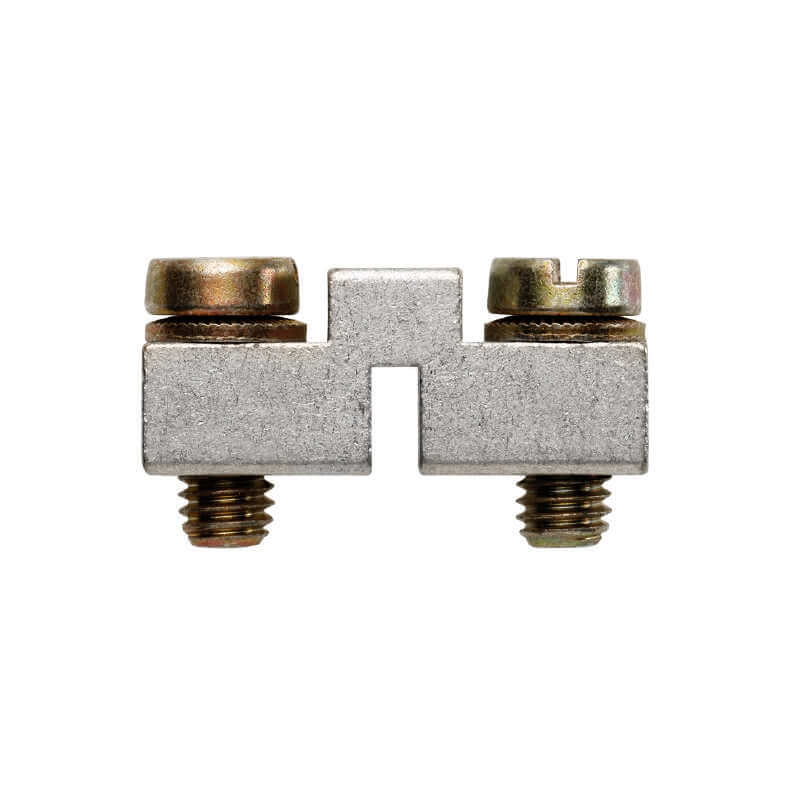

WQV 70N/2 2WAY JUMPER FOR WDU70 | 951224 |
£6.30
|
Add to cart | |
![]() |
WQV 70N/3 3WAY JUMPER FOR WDU70 | 951225 |
£8.08
|
Add to cart | |
![]() |
WQV 70N/4 4 WAY JUMPER FOR WDU70 | 953129 |
£10.08
|
Add to cart |
![](/media/parkuk%20cms/product%20images/weidmuller/1339%20-%20Weidmuller%20Part%20102000.jpg)
W-series screw connection with clamping-yoke technology
Whatever your requirements for the control cabinet: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety. You can use both screw-in and plug-in cross-connections for potential distribution. Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. The screw connection has long been an established connection element to meet exacting demands in terms of reliability and functionality. And our W-series is still setting standards.
Our range
You can rely on it: thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in a wide range of different applications.
Universal application:
Numerous national and international approvals and qualifications in accordance with a variety of application standards make the W-series a universal connection solution, especially in harsh conditions.
Varied product assortment with wide clamping range:
Our modular terminal blocks with clamping yoke technology are available in both standard and compact designs. The compact design covers wire cross-sections from 0.05 mm2 to 150 mm2 and helps save space in the control cabinet.
The standard version covers conductor cross sections of up to 240 mm2. The identical contours of the modular terminal blocks make configuration easier and reduces the quantity of accessories required.
Features
Flexibility
The maintenance-free connection means the clamping screw does not need to be re-tightened.
Can be clipped to or removed from the terminal rail in either direction.
Time saving
Quick installation as the products are delivered with clamping yoke open identical contours for easier planning.
Space saving
Small "W-Compact" size saves space in the cabinet two conductors can be connected for each contact point.
Safety
The clamping yoke properties compensate for temperature-indexed changes to the conductor to prevent loosening.
Vibration-resistant connectors - ideal for applications in harsh conditions protection against incorrect conductor entry.
Copper current bar for low voltages, clamping yoke and screw made of hardened steel
precise clamping yoke and current bar design for safe contact with even the smallest of conductors.
Our promise
The high reliability and variety of designs of the modular terminal blocks with clamping yoke connections make planning easer and optimises operational safety. Klippon® Connect provides a proven response to a range of different requirements.
