Product Description

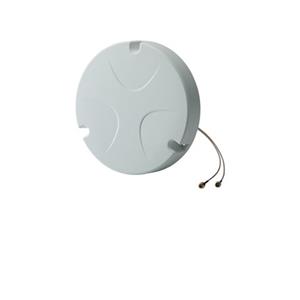

The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with a RP-SMA-type (male) connector.

The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.

Features and Benefits

• RP-SMA-type (male) connector
• Lightweight
• Easy to mount on the ceiling
• -40 to 75°C operating temperature range

MAT-WDB-CA-RM-2-0205

MAT-WDB-CA-RM-2-0205 Series

2.4/5 GHz, ceiling antenna, 2/5 dBi, MIMO 2x2, RP-SMA-type (male)

Antenna Characteristics

• Frequency:

  • 2.4 to 2.5, 4.9 to 5.9 GHz

• Antenna Type:

  • MIMO 2x2, Omni-directional

• Typical Antenna Gain:

  • 2/5 dBi

• Connector:

  • RP-SMA (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear

• HPBW/Horizontal:

  • 360°

• V.S.W.R.:

  • 2:1 max.

• Power Handling:

  • 10 W (max.)

Physical Characteristics

• Weight:

  • 115 g (0.25 lb)

• Height:

  • 37 mm (1.46 in)

• Diameter:

  • 210.9 mm (8.3 in)

• Radome Color:

  • White

• Radome Material:

  • ABS

• Installation:

  • Ceiling mount

• Cable:

  • RG-178

• Cable Length:

  • 250 mm (9.84 in)

Environmental Limits

• Operating Temperature:

  • -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included):

  • -40 to 75°C (-40 to 167°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
