Product Description

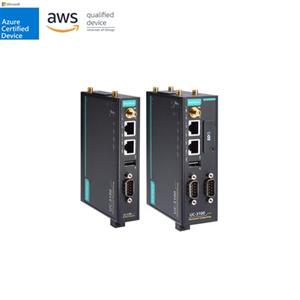

Moxa’s UC-3100 Series computers can be used as smart gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes a diverse set of models, each supporting different wireless options and protocols. The UC-3100’s advanced heat dissipation design makes it suitable for use in temperatures ranging from -40 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize the data pre-processing and data transmission capabilities of your applications in most harsh environments.

The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3100 supports the following software features, allowing you to use the most suitable configuration for your application.

• High VPN performance; more than 70 Mbps Ethernet throughput with AES-256 encryption
• Robust file system to prevent the system from being bricked due to a firmware upgrade failure
• Real COM mode to provide a control interface to Moxa’s NPort products

In addition, Moxa provides 10 years of Linux OS support. With a new version of the Debian repository released on an average every 2 to 3 years, you can create a reliable solution that will be supported now and long into the future.

Features and Benefits

• Armv7 Cortex-A8 1000 MHz processor
• Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1 for the US, EU, and APAC regions
• Bluetooth 4.2 support
• LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
• Industrial CAN 2.0 A/B protocols supported
• -40 to 70°C operating temperature range
• Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
• Long-term Linux support until 2027; includes bug fixes and security patches

ANT-GPS-CSM-04-0.2m BK

UC-3100 Series

1575 MHz active GPS/GLONASS 4 dBi antenna with SMA (male) connector and 20-cm cable

Computer

• DRAM:

  • 1 GB DDR3

• Supported OS:

  • Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
    See www.moxa.com/MIL

• Storage Pre-installed:

  • 8 GB eMMC

Computer Interface

• Ethernet Ports:

  • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2

• USB 2.0:

  • USB 2.0 hosts x 1, type-A connectors

• Cellular Antenna Connector:

  • SMA x 2

• SIM Format:

  • Nano

• Number of SIMs:

  • 2

• GPS Antenna Connector:

  • SMA x 1

• Console Port:

  • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

Ethernet Interface

• Magnetic Isolation Protection:

  • 1.5 kV (built-in)

Serial Interface

• Data Bits:

  • 5, 6, 7, 8

• Parity:

  • None, Even, Odd, Space, Mark

• Stop Bits:

  • 1, 1.5, 2

Serial Signals

• RS-232:

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS-422:

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w:

  • Data+, Data-, GND

• RS-485-4w:

  • Tx+, Tx-, Rx+, Rx-, GND

LED Indicators

• System:

  • Power x 1

• Serial:

  • 1 per port (Tx, Rx)

• LAN:

  • 1 per port (10/100 Mbps)

Power Parameters

• Power Consumption:

  • UC-3101: 6 W (max.)
    UC-3111/UC-3121: 8 W (max.)

• Input Current:

  • 500 mA @ 12 VDC

• Input Voltage:

  • 9 to 36 VDC

Physical Characteristics

• Housing:

  • Metal

• Installation:

  • DIN-rail mounting
    Wall mounting (with optional kit)

• Dimensions (without ears):

  • 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in) for UC-3101
    128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in) for UC-3111/UC-3121

• Weight:

  • Product only: 550 g (1.22 lb)

Environmental Limits

• Storage Temperature (package included):

  • -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity:

  • 5 to 95% (non-condensing)

• Vibration:

  • 5 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

• Shock:

  • IEC 60068-2-27

Standards and Certifications

• EMC:

  • EN 61000-6-2/-6-4
    EN 55032/24

• EMI:

  • CISPR 22, FCC Part 15B Class A

• EMS:

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Carrier Approvals:

  • Verizon
    AT&T

• Cellular Standards:

  • EN 301511
    EN 301908-1
    EN 62311(MPE SAR)
    EN 301489-1/-52
    EN 301489-1/17

• Radio Frequency:

  • FCC
    PTCRB
    RCM

• Safety:

  • IEC 60950-1
    IEC 62368-1
    UL 62368-1
    UL 60950-1

• WLAN Standards:

  • EN 301489-1-17
    EN 300328
    EN 301893

• Green Product:

  • RoHS, CRoHS, WEEE

• Hazardous Locations:

  • Class I Division 2
    IECEx
    ATEX

MTBF

• Standards:

  • Telcordia (Bellcore) Standard

Warranty

• Warranty Period:

  • 5 years

• Details:

  • See www.moxa.com/warranty
