Product Description

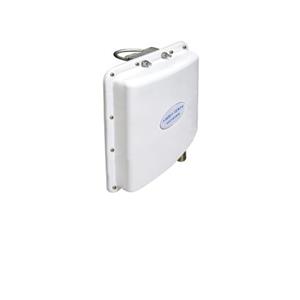

The ANT-WSB-PNF-12-02 is asingle-band high-gain directional panel antenna with a waterproof N-type female connector. The antenna provides a gain of 12 dBi at 2.4 GHz.

The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Features and Benefits

• High-gain antenna to enhance performance
• Waterproof N-type connector
• Pole-mounting support
• Housing provides IP65 protection
• -40 to 85°C operating temperature range

ANT-WSB-PNF-12-02

ANT-WSB-PNF-12-02 Series

12 dBi at 2.4 GHz, N-type (female), single-band directional antenna

Antenna Characteristics

• Frequency:

  • 2.4 to 2.4835 GHz

• Antenna Type:

  • Directional, Panel

• Typical Antenna Gain:

  • 12 dBi

• Connector:

  • N-type (female)

• Impedance:

  • 50 ohms

• HPBW/Horizontal:

  • 30°

• HPBW/Vertical:

  • 30°

• V.S.W.R.:

  • 1:2.0 max.

• Power Handling:

  • 10 W (max.)

• Polarization:

  • Vertical

Physical Characteristics

• IP Rating:

  • IP65

• Dimensions:

  • 260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)

• Radome Color:

  • White

• Radome Material:

  • PC and ABS

• Installation:

  • Pole mount

• Weight:

  • 796 g (1.75 lb)

Environmental Limits

• Operating Temperature:

  • -40 to 85°C (-40 to 185°F)

• Storage Temperature (package included):

  • -40 to 85°C (-40 to 185°F)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
