Product Description

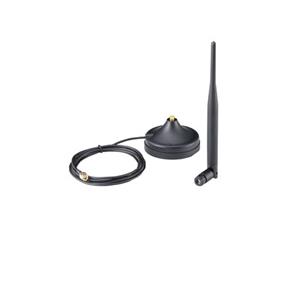

The ANT-WSB-AHRM-05-1.5m is an omni-directional lightweight compact dual-band high-gain indoor antenna with a SMA (male) connector and magnetic mount.

The antenna provides a gain of 5 dBi and is designed to operate in temperatures from -40 to 80°C.

Features and Benefits

• High gain antenna
• Small size for easy installation
• Lightweight for portable deployment
• Straight mount or magnetic base mount
• SMA connector (male) supported

ANT-WSB-AHRM-05-1.5m

ANT-WSB-AHRM-05-1.5m Series

5 dBi at 2.4 GHz, RP-SMA (male), omnidirectional/dipole antenna, 1.5 m cable

Antenna Characteristics

• Frequency:

  • 2.4 to 2.5 GHz

• Antenna Type:

  • Omni-directional, Rubber antenna

• Typical Antenna Gain:

  • 5 dBi

• Connector:

  • RP-SMA (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear

• HPBW/Horizontal:

  • 360°

• HPBW/Vertical:

  • 80°

• V.S.W.R.:

  • 2:1 max.

Physical Characteristics

• Weight:

  • 300 g (0.66 lb)

• Length (including base):

  • 236 mm (9.29 in)

• Radome Color:

  • Black

• Radome Material:

  • Plastic

• Installation:

  • Magnetic mount

• Cable:

  • RG-174

• Cable Length:

  • 1.5 m

Environmental Limits

• Operating Temperature:

  • -40 to 80°C (-40 to 176°F)

• Storage Temperature (package included):

  • -40 to 80°C (-40 to 176°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
