Product Description

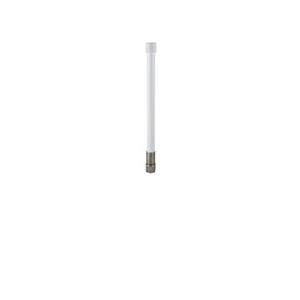

The ANT-WDB-ONM-0707 is an omnidirectional dual-band high-gain antenna with a waterproof N-type male connector.

The IP65-rated housing and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Features and Benefits

• High-gain antenna to enhance performance
• Waterproof N-type connector
• Lightweight
• Housing provides IP65 protection
• -40 to 85°C operating temperature range

ANT-WDB-ONM-0707

ANT-WDB-ONM-0707 Series

07 dBi at 2.4 GHz and 07 dBi at 5 GHz, N-type (male), dual-band omnidirectional antenna

Antenna Characteristics

• Frequency:

  • 2.4 to 2.4835 GHz or 5.15 to 5.85 GHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 7/7 dBi

• Impedance:

  • 50 ohms

• HPBW/Horizontal:

  • 360°

• V.S.W.R.:

  • 1:2.5 max.

• Power Handling:

  • 10 W (max.)

• Polarization:

  • Vertical

• Connector:

  • N-type (male)

Physical Characteristics

• IP Rating:

  • IP65

• Dimensions:

  • Diameter: 20 mm (0.79 in)
    Length: 528 mm (20.79 in)

• Weight:

  • 152 g (0.34 lb)

• Radome Color:

  • White

• Radome Material:

  • Fiberglass

• Installation:

  • Straight mount

Environmental Limits

• Operating Temperature:

  • -40 to 85°C (-40 to 185°F)

• Storage Temperature (package included):

  • -40 to 85°C (-40 to 185°F)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
