Product Description

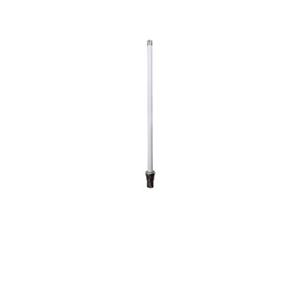

The ANT-WDB-ONF-0709 is an omnidirectional dual-band high-gain antenna with a waterproof N-type female connector.

The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Features and Benefits

• High-gain antenna to enhance performance
• Waterproof N-type connector
• Lightweight
• Compact form factor
• Pole-mounting support
• Housing provides IP65 protection
• -40 to 80°C operating temperature range

ANT-WDB-ONF-0709

ANT-WDB-ONF-0709 Series

7 dBi at 2.4 GHz or 9 dBi at 5 GHz, N-type (female), dual-band, omnidirectional antenna

Antenna Characteristics

• Frequency:

  • 2.4 to 2.4835 GHz or 5.15 to 5.85 GHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 7/9 dBi

• Connector:

  • N-type (female)

• Impedance:

  • 50 ohms

• HPBW/Horizontal:

  • 360°

• V.S.W.R.:

  • 1:2.5 max.

• Power Handling:

  • 10 W (max.)

• Polarization:

  • Vertical

Physical Characteristics

• IP Rating:

  • IP65

• Dimensions:

  • Diameter: 22 mm (0.87 in)
    Length: 610 mm (24.0 in)

• Weight:

  • 461 g (1.02 lb)

• Radome Color:

  • White

• Radome Material:

  • Fiberglass

• Installation:

  • Pole mount

Environmental Limits

• Operating Temperature:

  • -40 to 85°C (-40 to 185°F)

• Storage Temperature (package included):

  • -40 to 85°C (-40 to 185°F)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
