Product Description

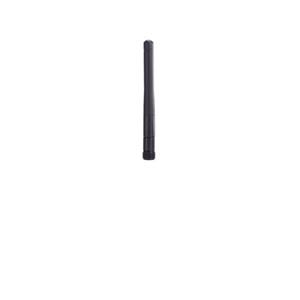

The ANT-WDB-ARM-02 is an omni-directional lightweight compact dual-band indoor antenna.

The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 80°C.

Features and Benefits

• Small size for easy installation
• Lightweight for portable deployment
• Tilt and swivel design
• Flexible installation
• RP-SMA-type (male) connector

ANT-WDB-ARM-02

ANT-WDB-ARM-02 Series

2 dBi at 2.4 GHz or 2 dBi at 5 GHz, RP-SMA (male) omnidirectional rubber-duck antenna

Antenna Characteristics

• Frequency:

  • 2.4 to 2.5, 5.2 to 5.8 GHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 2/2 dBi

• Connector:

  • RP-SMA (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Vertical

• HPBW/Horizontal:

  • 360°

• HPBW/Vertical:

  • 80°

• V.S.W.R.:

  • 2:1 max.

Physical Characteristics

• Weight:

  • 10 g (0.02 lb)

• Length:

  • 108 mm (4.25 in)

• Radome Color:

  • Black

• Radome Material:

  • Plastic

• Installation:

  • Straight mount

Environmental Limits

• Operating Temperature:

  • -40 to 80°C (-40 to 176°F)

• Storage Temperature (package included):

  • -40 to 80°C (-40 to 176°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
