Product Description

The ANT-WDB-ANM-0502 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors.

The IP67-rated housing, pole-mounting support and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.

Features and Benefits

• High-gain antenna to enhance performance
• Waterproof N-type connector
• Lightweight
• Housing provides IP67 protection
• -40 to 80°C operating temperature range

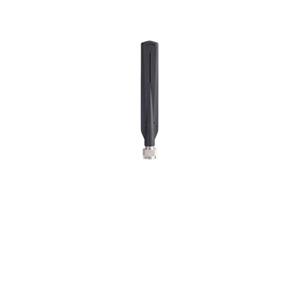

ANT-WDB-ANM-0502

ANT-WDB-ANM-0502 Series

5 dBi at 2.4 GHz or 2 dBI at 5 GHz, N-type (male), omnidirectional antenna

Antenna Characteristics

• Frequency:

  • 2.4 to 2.5, 5.1 to 5.9 GHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 5/2 dBi

• Connector:

  • N-type (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear

• HPBW/Horizontal:

  • 360°

• HPBW/Vertical:

  • 65°

• V.S.W.R.:

  • 1:2 max.

• Power Handling:

  • 2 W (max.)

Physical Characteristics

• Weight:

  • 72 g (0.16 lb)

• Length:

  • 189.4 mm (7.46 in)

• Diameter:

  • 26 mm (1.02 in)

• IP Rating:

  • IP67

• Radome Color:

  • Black

• Radome Material:

  • NY66

• Installation:

  • Straight mount

Environmental Limits

• Operating Temperature:

  • -40 to 80°C (-40 to 176°F)

• Storage Temperature (package included):

  • -40 to 80°C (-40 to 176°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
