Product Description

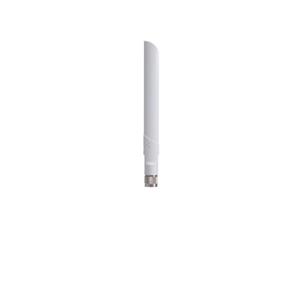

The ANT-WDB-ANM-0306 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors.

The IP67-rated housing, pole-mounting support and a wide operating temperature range of -40 to 75°C make it suitable for outdoor use.

Features and Benefits

• Outdoor waterproof N-type connector
• Lightweight
• Compact form factor
• Housing provides IP67 protection
• -40 to 75°C operating temperature range

ANT-WDB-ANM-0306

ANT-WDB-ANM-0306 Series

3 dBi at 2.4 GHz or 6 dBI at 5 GHz, N-type (male), omnidirectional antenna

Antenna Characteristics

• Frequency:

  • 2.4 to 2.5, 4.9 to 5.825 GHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 3.5/6 dBi

• Connector:

  • N-type (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear

• HPBW/Horizontal:

  • 360°

• V.S.W.R.:

  • 2:1 max.

• Power Handling:

  • 1 W max.

Physical Characteristics

• IP Rating:

  • IP67

• Dimensions:

  • Diameter: 22 mm (0.87 in)
    Length: 215 mm (8.46 in)

• Weight:

  • 68.9 g (0.15 lb)

• Radome Color:

  • White

• Radome Material:

  • PC-9330

• Installation:

  • Straight mount

Environmental Limits

• Operating Temperature:

  • -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included):

  • -40 to 75°C (-40 to 167°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
