Product Description

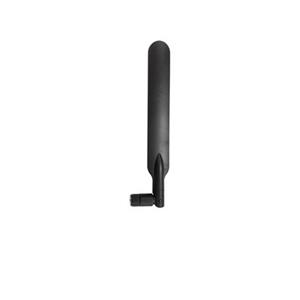

The ANT-LTEUS-ASM-01 is an omni-directional lightweight compact antenna suitable for GSM/GPRS/EDGE/UMTS/HSPA/LTE bands.

The antenna provides a gain of 1 dBi and is designed to operate in temperatures from -30 to 75°C.

Features and Benefits

• Small size for easy installation
• Lightweight for portable deployment
• Tilt and swivel design
• Flexible installation
• SMA connector (male) supported

ANT-LTEUS-ASM-01

ANT-LTEUS-ASM-01 Series

GSM/GPRS/EDGE/UMTS/HSPA/LTE, 1 dBi, omnidirectional rubber-duck antenna

Antenna Characteristics

• Frequency:

  • 700/850/900/1700/1900/2600 MHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 1 dBi @ 698 to 960 MHz
    2 dBi @ 1710 to 1990 MHz
    2 dBi @ 2300 to 2400 MHz
    2 dBi @ 2500 to 2700 MHz

• Connector:

  • SMA (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear, Vertical

• HPBW/Horizontal:

  • 360°

• V.S.W.R.:

  • < 3

Physical Characteristics

• Weight:

  • 26 g (0.06 lb)

• Length:

  • 205 mm (8.07 in)

• Radome Color:

  • Black

• Radome Material:

  • Plastic

• Installation:

  • Straight mount

Environmental Limits

• Operating Temperature:

  • -30 to 75°C (-22 to 167°F)

• Storage Temperature (package included):

  • -30 to 75°C (-22 to 167°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
