Product Description

The ANT-LTE-ASM-02 is an omni-directional lightweight compact antenna suitable for GPRS/EDGE/UMTS/HSPA/LTE bands.

The antenna provides a gain of 2 dBi and is designed to operate in temperatures from -30 to 75°C.

Features and Benefits

• Small size for easy installation
• Lightweight for portable deployment
• Tilt and swivel design
• Flexible installation
• SMA connector (male) supported

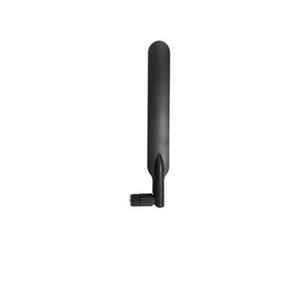

ANT-LTE-ASM-02

ANT-LTE-ASM-02 Series

GPRS/EDGE/UMTS/HSPA/LTE, 2 dBi, omnidirectional rubber-duck antenna

Antenna Characteristics

• Frequency:

  • 800/900/1800/2100/2600 MHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 2 dBi

• Connector:

  • SMA (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear, Vertical

• HPBW/Horizontal:

  • 360°

• V.S.W.R.:

  • < 3

Physical Characteristics

• Weight:

  • 26 g (0.06 lb)

• Length:

  • 161 mm (6.34 in)

• Radome Color:

  • Black

• Radome Material:

  • Plastic

• Installation:

  • Straight mount

Environmental Limits

• Operating Temperature:

  • -20 to 65°C (-4 to 149°F)

• Storage Temperature (package included):

  • -20 to 65°C (-4 to 149°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
