Product Description

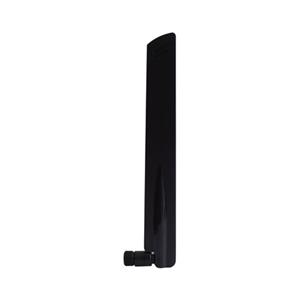

The ANT-5G-ASM-07 Series is an omnidirectional lightweight compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands.

The antenna provides a gain of 7 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

Features and Benefits

• Supports 5G NR and 4G LTE
• High-gain antenna to enhance performance
• Lightweight for portable deployment
• Tilt and swivel design
• Flexible installation
• SMA connector (male) supported

ANT-5G-ASM-07

ANT-5G-ASM-07 Series

7 dBi, omnidirectional rubber-duck antenna for GSM, UMTS, LTE, and 5G NR applications

Antenna Characteristics

• Frequency:

  • 617 to 960, 1710 to 2170, 2300 to 2690, 3300 to 3800, 4200 to 4700, 5000 to 5925 MHz

• Antenna Type:

  • Omni-directional

• Typical Antenna Gain:

  • 1.29 dBi @ 617 to 698 MHz
    2.00 dBi @ 698 to 824 MHz
    1.29 dBi @ 824 to 960 MHz
    3.77 dBi @ 1710 to 1880 MHz
    4.55 dBi @ 1850 to 1990 MHz
    5.49 dBi @ 1920 to 2170 MHz
    5.21 dBi @ 2300 to 2690 MHz
    5.14 dBi @ 3300 to 3800 MHz
    6.57 dBi @ 4200 to 4700 MHz
    7.72 dBi @ 5000 to 5925 MHz

• Connector:

  • SMA (male)

• Impedance:

  • 50 ohms

• Polarization:

  • Linear, Vertical

• HPBW/Horizontal:

  • 360°

• V.S.W.R.:

  • < 7.5 @ 617 to 698 MHz
    < 4.5 @ 698 to 824 MHz
    < 4.4 @ 824 to 960 MHz
    < 1.9 @ 1710 to 1880 MHz
    < 2.7 @ 1850 to 1990 MHz
    < 4.1 @ 1920 to 2170 MHz
    < 2.1 @ 2300 to 2690 MHz
    < 2.5 @ 3300 to 3800 MHz
    < 1.9 @ 4200 to 4700 MHz
    < 2.0 @ 5000 to 5925 MHz

Physical Characteristics

• Weight:

  • 35.8 g (0.08 lb)

• Length:

  • 220 mm (8.66 in)

• Radome Color:

  • Black

• Radome Material:

  • Plastic

• Installation:

  • Straight mount

Environmental Limits

• Operating Temperature:

  • -40 to 85°C (-40 to 185°F)

• Storage Temperature (package included):

  • -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity:

  • 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period:

  • 1 year

• Details:

  • See www.moxa.com/warranty
