Product Description

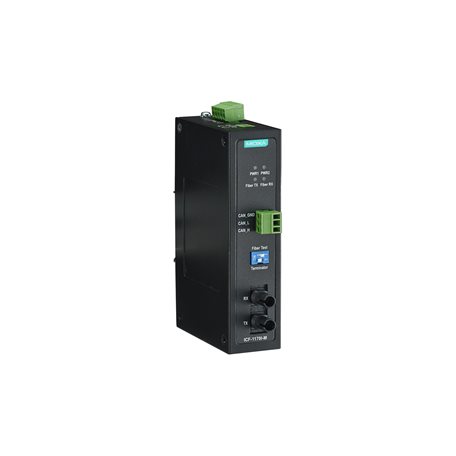

The ICF-1170I Series CAN-to-fiber converters are used to convert CAN signals from copper to optical fiber.

The converters come with 2 kV optical isolation for the CAN bus system and dual power inputs with alarm contact relay to ensure that your CAN bus system will remain online.

Features and Benefits

• Transmits data up to 2 km over optical fiber
• Converts CAN signals to fiber and fiber to CAN signals
• Baudrate up to 1 Mbps
• Dual power inputs for redundancy
• DIP switch for 120 ohm terminal resistance
• DIP switch for fiber test mode
• LEDs for Fiber Tx, Fiber Rx, Power 1, Power 2
• Wide-temperature model available for -40 to 85°C environments
• Fully compatible with the ISO 11898 standard

Fiber Test Mode

Fiber Test Mode can be used to test the fiber cable between two ICF-1170I units, and it provides a simple way to determine if the fiber cable is transmitting data correctly. When in Fiber Test Mode, the fiber transceiver (Tx) will continuously send out a data signal and the Fiber Tx LED will light up.

On the other side of the connection, when the ICF-1170I fiber transceiver (Rx) receives the data signal from the Tx side, the Fiber Rx LED will light up.
