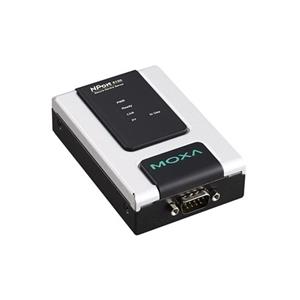

1 Port Terminal Server, 3 in 1, 10/100M Ethernet, 12-48 VDC, -40 to 75°C


  •  MOXA
  •  NPort 6150-T

On Order
£372.80 (ex VAT)

Product Description

Our NPort device servers make your serial devices network-ready in an instant. Their compact size makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN.

The NPort® 6000 device servers use the TLS and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fibre network. Both single-mode and multi-mode fiber are supported.

Features and Benefits

  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Supports nonstandard baudrates with high precision
  • NPort 6250: Choice of network medium: 10/100BaseT(X) or 100BaseFX
  • Enhanced remote configuration with HTTPS and SSH
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Generic serial commands supported in Command-by-Command mode
  • Security features based on IEC 62443

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.

Zero Data Loss If Ethernet Connection Fails

The NPort® 6250 device servers help guarantee reliability by providing users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6250 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6250 will immediately release all of the data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.

1 Port Terminal Server, 3 in 1, 10/100M Ethernet, 12-48 VDC, -40 to 75°C
Product
Part No: NPort 6150-T
Manufacturer Part No: NPort 6150-T
Net Weight (kg): Not Available
Dimensions (WxLxH): Not Available
Commodity Code: 85176200
Country of Origin: TW
Additional Product Information
Unit Code EACH
