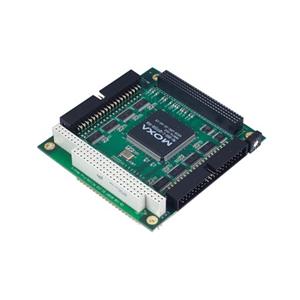

8 Port PC/104+ Board, RS-232


  •  MOXA
  •  CB-108

On Order
£296.90 (ex VAT)

Product Description

The CB-108 PC/104-Plus modules come with 8 RS-232 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.

The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.

Features and Benefits

  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip hardware and software flow control
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
  • Wide-temperature model available for -40 to 85°C environments
  • Easy maintenance with built-in LEDs and management software
8 Port PC/104+ Board, RS-232
Product
Part No: CB-108
Manufacturer Part No: CB-108
Net Weight (kg): Not Available
Dimensions (WxLxH): Not Available
Commodity Code: 8591095000
Country of Origin: TW
Additional Product Information
Unit Code EACH
