Product Description

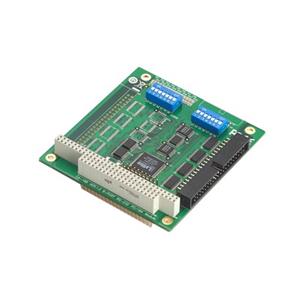

The CA-104 PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 4 RS-232 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface.

Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.

Features and Benefits

• 921.6 kbps maximum baudrate for fast data transmission
• On-chip software flow control
• IRQ and I/O settings are jumper and DIP switch selectable
• Onboard Tx and Rx LED indicators for each port
• Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
• Wide-temperature model available for -40 to 85°C environments
