EDS Unmanaged EDS-20
EDS Unmanaged EDS-20

5-Port Entry-level Unmanaged Switch, 5 Fast TP ports, -40 to 75°C

  •  MOXA
  •  EDS-2005-EL-T
In Stock
£139.30 (ex VAT)
£107.26 (ex VAT) 23%
Add to Cart
Add to Favourites

Product Description

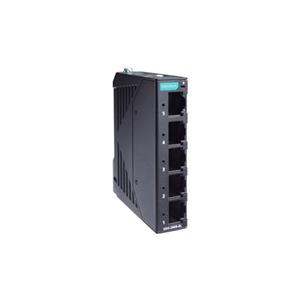

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

Features and Benefits

  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C wide operating temperature range (-T models)
5-Port Entry-level Unmanaged Switch, 5 Fast TP ports, -40 to 75°C
Product
Part No: EDS-2005-EL-T
Manufacturer Part No: EDS-2005-EL-T
Net Weight (kg): Not Available
Dimensions (WxLxH): Not Available
Commodity Code: 85176200
Country of Origin: TW
Additional Product Information
Unit Code EACH
